GoldenDB告警脚本部署及基本使用

GoldenDB-Sloth-告警部署和基础应用

目 录

1、 上传工具包

(1) 将alarm告警工具压缩包上传至insight服务器中

2、 复制文件

3、 编辑配置文件

(1) 编辑告警发送格式

(2) 编辑告警发送渠道send.xml

(3) 编辑告警过滤器filters.xml

4、 启动告警

检查是否启动,有进程即启动成功

5、 查看日志

tail -f send_alarm.log

1、上传工具包

(1) 将alarm告警工具压缩包上传至insight服务器中

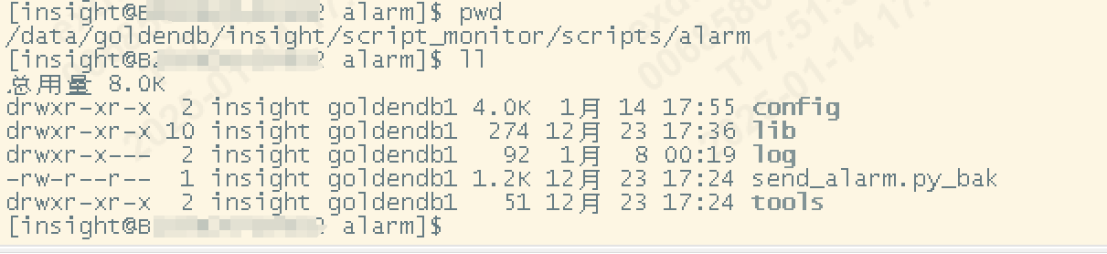

2、复制文件

(1) 解压后，将alarm/ 整个路径复制到$HOME_INSIGHT/script_monitor/scripts/ 下

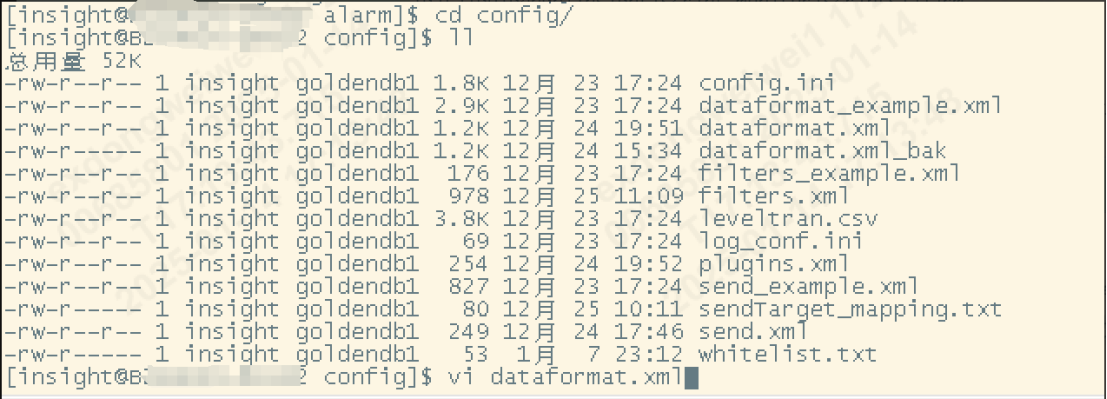

3、编辑配置文件

cd $HOME_INSIGHT/script_monitor/scripts/alarm/config

(1) 编辑告警发送格式

vi dataformat.xml

详细可参考dataformat_example.xml

<dataformats>

    <dataformat>

        <platform>sxyd_sendnotice</platform>

        <data_structure>jsonstr</data_structure>

        <new_alarm>

            <dict>

                <origin>goldendb</origin>

                <mobile>${sendTarget}</mobile>

                <content>GoldenDB告警通知:-序号：${alarmId} -名称：${alarmDesc}(${alarmReasonCode}) -级别：${severity} -告警对象：${resourceName} -生成时间：${alarmTime} -告警内容：${alarmReason},${alarmDetailReason}</content>

                <needReplay>false</needReplay>

                <proId>sx</proId>

                </dict>

        </new_alarm>

        <recovery_alarm>

            <dict>

                <origin>goldendb</origin>

                <mobile>${sendTarget}</mobile>

                <content>GoldenDB告警解除通知:-序号：${alarmId} -名称：${alarmDesc}(${alarmReasonCode}) -级别：${severity} -告警对象：${resourceName} -生成时间：${alarmTime} -告警内容：${alarmReason},${alarmDetailReason}</content>

                <needReplay>false</needReplay>

                <proId>sx</proId>

                </dict>

        </recovery_alarm>

    </dataformat>

</dataformats>

(2) 编辑告警发送渠道send.xml

vi send.xml

详细可参考send_example.xml

<sending_method>

    <res_interface>

        <sender>

             <platform>发送渠道名称</platform>

             <url>发送方接口</url>

        </sender>

    </res_interface>

</sending_method>

(3) 编辑告警过滤器filters.xml

vi filters.xml

详细可参考filters_example.xml

<filters>

    <filter>

       <platform>发送渠道名称</platform>

       <class_path>过滤器路径</class_path>

       <class>过滤器类名</class>

       <过滤器参数名(如有)>参数值</过滤器参数名(如有)>

    </filter>

    <filter>

       <platform>发送渠道名称</platform>

       <class_path>过滤器路径</class_path>

       <class>过滤器类名</class>

    </filter>

</filters>

① 过滤器示例：

1) 告警通知多个手机号

第一步：vi filter.xml

    <filter>

      <platform>发送渠道名称</platform>

      <class_path>lib.filter.gengrate_metadata</class_path>

      <class>GenerateMetaData</class>

      <old_metadata>${severity}</old_metadata>

      <new_metadata>mobile</new_metadata>

      <tranfile>config/sendTarget_mapping.txt</tranfile>

      <default>发送默认手机号</default>

      <verify>

          <policy>checkLength</policy>

          <checklength>11</checklength>

          <split_symbol>,</split_symbol>

      </verify>

</filter>

第二步：vi plugins.xml

<plugins>

    <plugin>

        <platform>发送渠道名称<</platform>

<class_path>lib.plugins.dispatcher_plugin</class_path>

<class>DispatcherPlugin</class>

        <split_data>mobile</split_data>

<split_symbol>,</split_symbol>

    </plugin>

</plugins>

第三步：创建手机号文本文件 vi sendTarget_mapping.txt

#格式：告警级别+@#@+告警手机号

1@#@1393*******

2@#@1393*******

3@#@1393*******

4@#@1393*******

8@#@1393*******

完成.

2) 告警过滤指定租户

vi filter.xml

    <filter>

       <platform>发送渠道名称</platform>

       <class_path>lib.filter.clusteridfilter</class_path>

       <class>ClusterIdFilter</class>

       <clusteridfilter>需要过滤的租户ID(多个逗号隔开)</clusteridfilter>

    </filter>

3) 告警过滤指定告警代码

第一步：vi filter.xml

    <filter>

       <platform>发送渠道名称</platform>

       <class_path>lib.filter.alarmreasoncodefilter</class_path>

       <class>alarmreasoncodeFilter</class>

       <whitelistpath>config/whitelist.txt</whitelistpath>

</filter>

a. 告警过滤指定告警代码

第二步：编辑白名单文件 vi whitelist.txt

#1 is open,0 is close

#格式：告警代码+逗号+0或1

2021401,1

2000101,1

2000109,1

完成.

4、启动告警

(1) Insight会自动监听告警目录下的告警程序，只需将告警脚本重命名即可

cd  $HOME_INSIGHT/script_monitor/scripts/alarm/

cd  $HOME_INSIGHT/script_monitor/scripts/alarm/

mv  send_alarm.py*  send_alarm.py

检查是否启动,有进程即启动成功

ps -ef |grep send_alarm

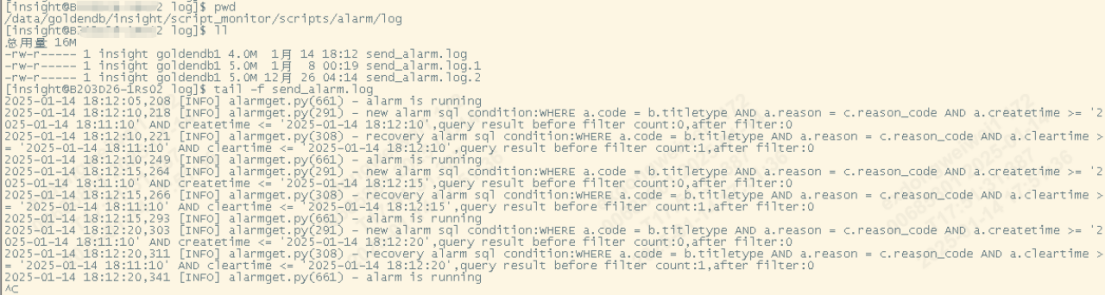

5、查看日志

cd  $HOME_INSIGHT/script_monitor/scripts/alarm/log

tail -f send_alarm.log
